Let’s take your basic 4 bedroom 3 bathroom house that is 1500 SQFT.



We will first calculate a hygienic 1/3 Air Changer Per Hour.



(((1500sqft * 8.2’) /3) /60) =68 CFM by average volume

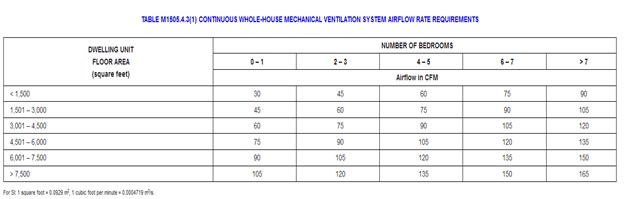

As you see in table M1505.4.3(1) on this chart ventilation rate is only 60 CFM

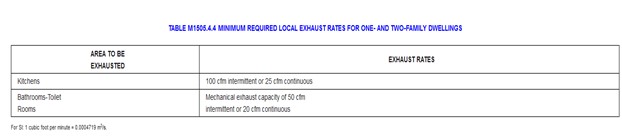

Now let’s calculate ventilation by Bathroom & Kitchen Continuously because that’s how smells and humidity really work.



60 cfm for 3 Bathrooms and one kitchen give us 84 CFM and we can either supply OR exhaust a Laundry room with 12CFM. If it is condensing dryer no venting is required.



This gives us 96 Total CFM. Since this is the higher of the 3 numbers, we’ll use this number.



We’ll take 96 CFM and add 10% for duct/installer loss and that give us 106 CFM. We’ll double that number because we want our ERV/HRV to work in its center capacity where it’s most efficient, reserving higher speeds for BOOST MODE.



We’ll need an ERV/HRV that is rated at 220CFM minimum.
